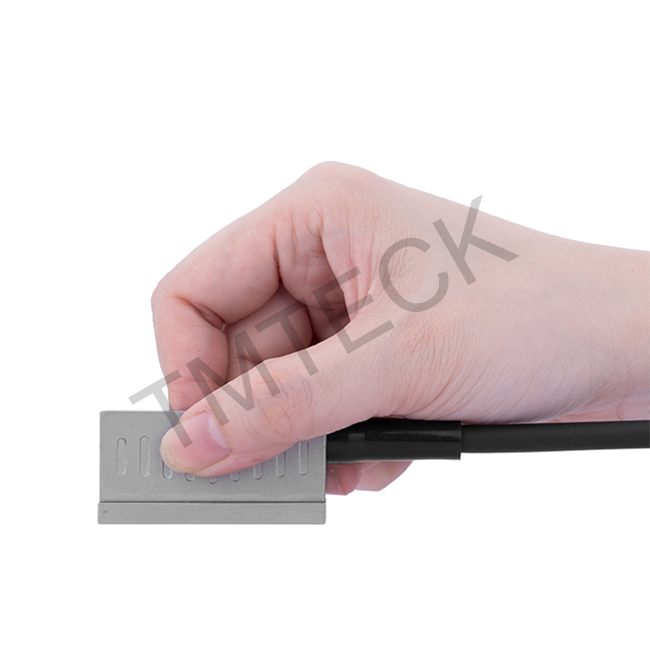

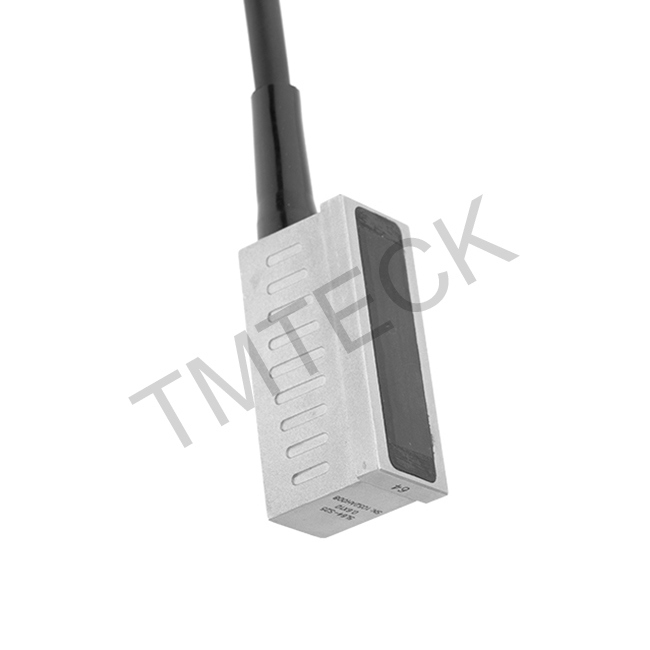

TS25 I1 Immersion Probe Single Scan Covers 30-90mm

Immersion Probe: It can be used together with water wedges, or the test samples can be placed in water to complete the test.

Advantages

1. Acoustic impedance matched to water, suitable for work piece inspection of geometrically complex shapes.

2. Designed to fit onto the wedge, easy to couple to a variety of surfaces with adjustable underwater sound paths.

3.Single linear scan can cover distances from 30 mm to 90 mm.

4.High accuracy , can work normally for 24 hours under one meter of water depth.

Applications

1.Testing of sheets or fittings made of steel, aluminum or other materials.

2.The composite was tested to detect defects such as delamination and disbonding.

3.Large area scanning of the detected object, online thickness measurement.

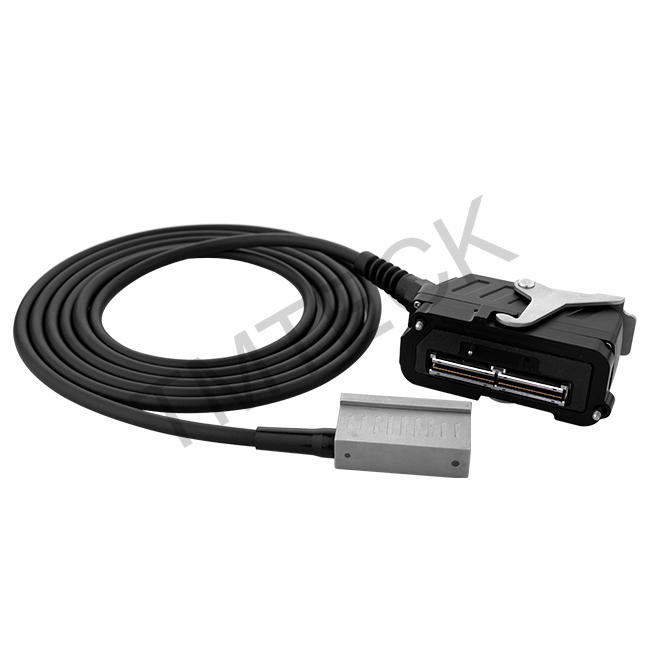

*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.

Quick Details

Model Number:7.5L128-0.6x10-TS25/7.5L128-76.8x10-I1

Element:128

Element Shape:linear

Size:LxWxH 50x21x25(mm) 1.97x0.83x0.98(in)

Application:Testing of sheets or fittings made of steel

Warranty:12 Months

Case:Stainless steel

Customization:yes

Type:phased array probe

Color:Silver

MOQ:1
